Axpert_Ultra8-11K KENZA

Description

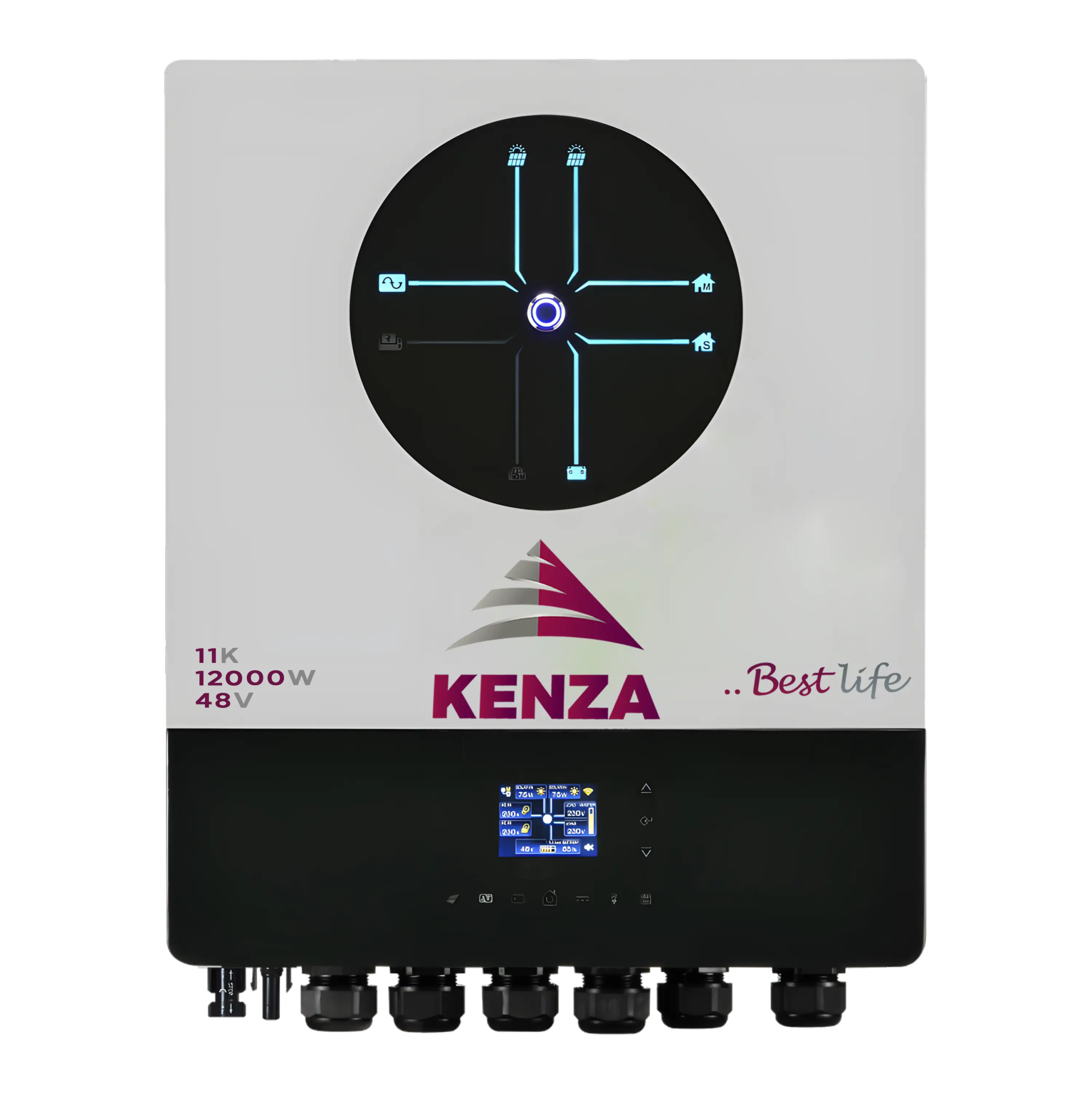

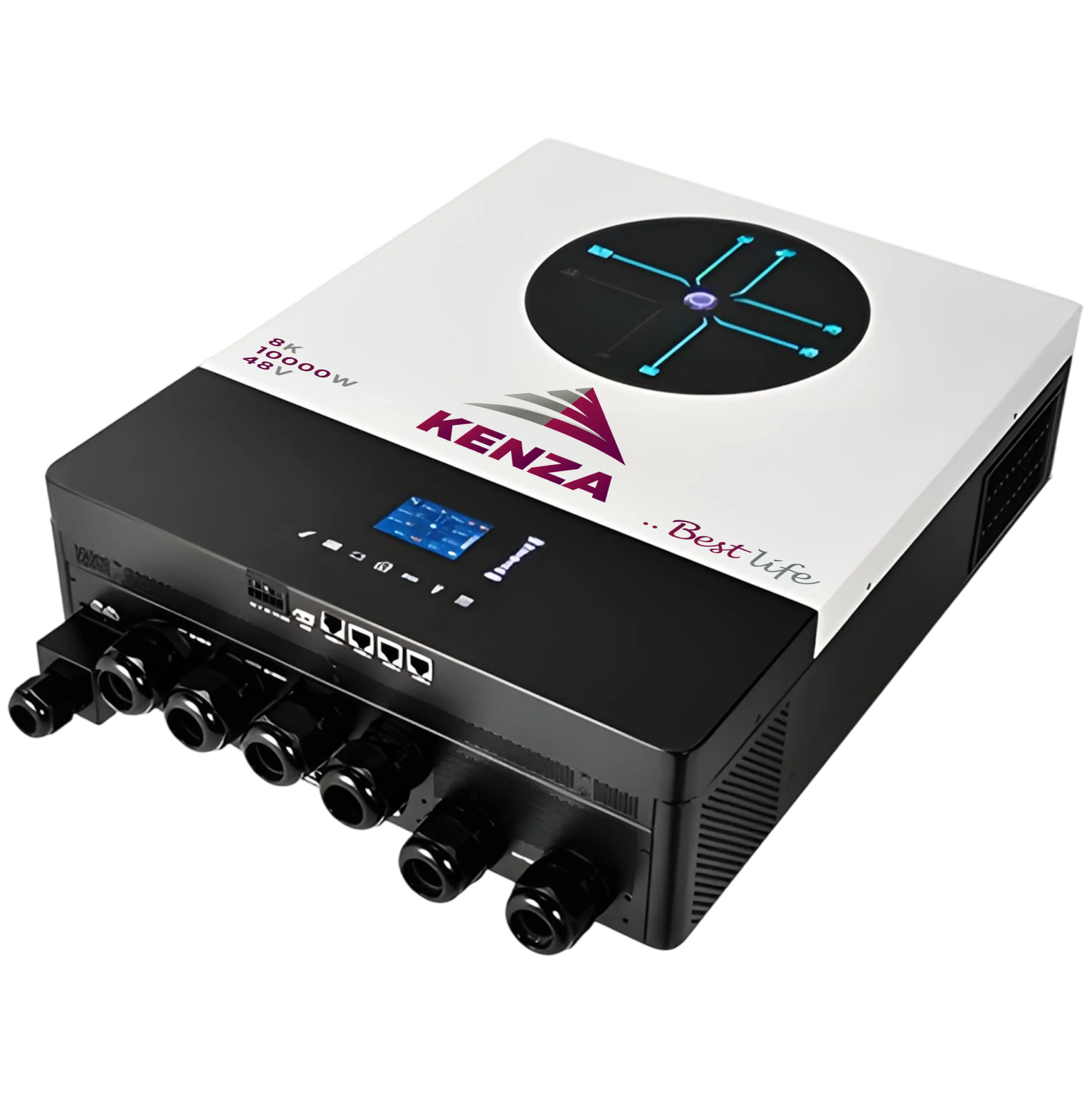

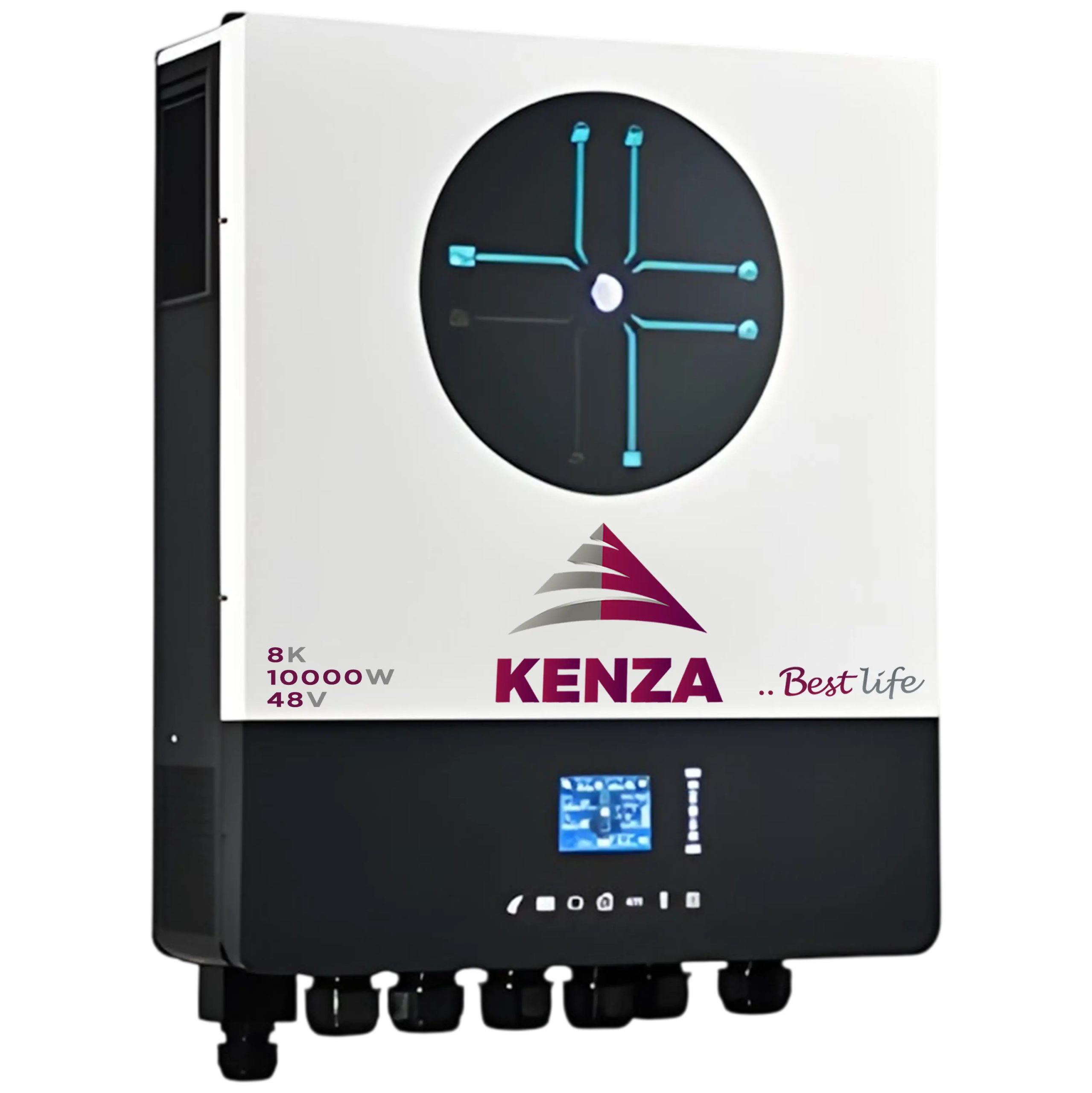

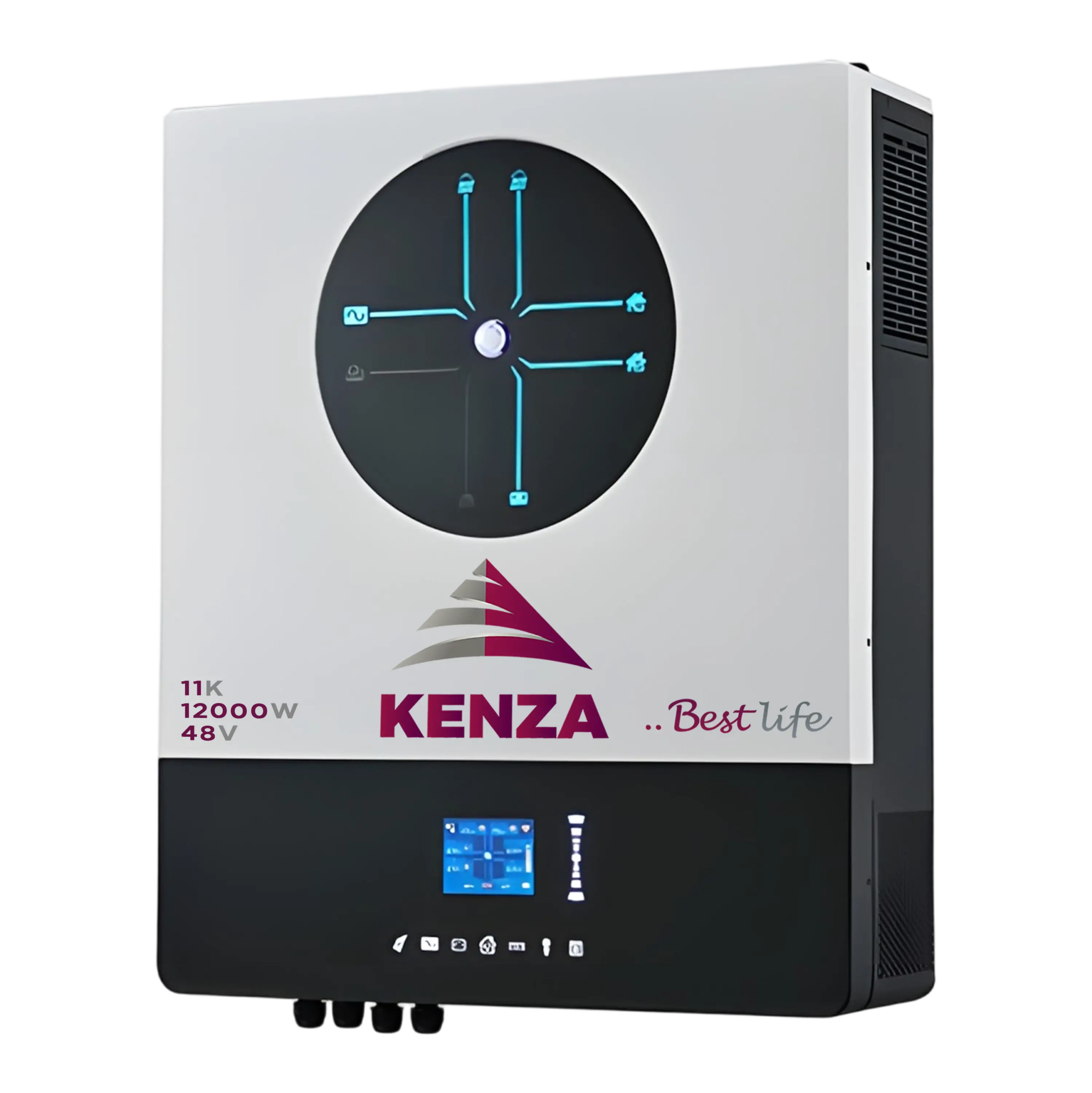

Expert Ultra 8KW/11KW

2 Inputs & 2 smart outputs

Equipped with 2 Inputs & 2 smart outputs, CT sensor, and user-friendly interface, Expert Ultra is top-equipped solar inverter. With two independent input power sources – utility and generator – it ensures uninterrupted AC power and incorporates a super large charger (150A) for fast battery charging, even with limited available time from AC or solar sources. In addition, the Expert Ultra offers a second AC output, enabling users to customize:

• Cut-off voltage
• State of charge (SoC) percentage
• Discharge time
• Scheduled on/off time

Main Features:

• Dual outputs for smart load management
• Two independent AC power sources connected and switched automatically
• Built-in current transformer sensor to meet self-consumption application
• Support external BTS (Battery Temperature Sensor) detection
• Built-in power status lighting indicators
• Built-in 2.8″ colored LCD with slide operation
• Built-in Wi-Fi for mobile monitoring and OTA firmware upgrade
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Support optional:
  • GFCI detection
  • Rapid shutdown
  • AFCI detections
• Parallel operation with up to 6 units
